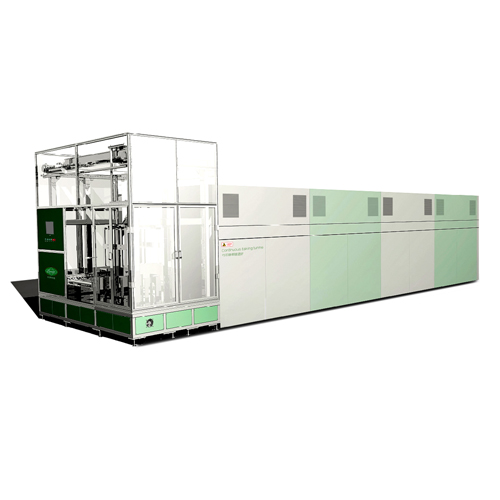

Automatic electric core static rail furnace
Content
system composition
■drive system
Automatic loading and unloading frame manipulator / automatic positioning guide mechanism / sprocket chain drive
■heating system
Heating pipe / centrifugal fan / thermal insulation rock wool / lifting thermal insulation door
■Safety protection system
Chain break / smoke alarm
Overtemperature / leakage
Equipment performance index and technical parameters
Control mode: PLC automatic program control, 7-inch color display large screen man-machine operation
Temperature range: room temperature - 85C can be set
Soil temperature uniformity: 2C
Modular design
Full range manipulator operation
Heating time: 45 minutes, the apparent temperature reaches 85C
Scope of application
The equipment meets the requirements of automatic static treatment of battery:
Equipment principle and working mode
Connect the previous process through the conveying line, and realize automatic heating, constant temperature and cooling by transporting the stacked battery frame to the feeding area of the furnace body. Then, the battery frame is transported away from the furnace body by the blanking manipulator and transported to the subsequent process by the conveying line.
■drive system
Automatic loading and unloading frame manipulator / automatic positioning guide mechanism / sprocket chain drive
■heating system
Heating pipe / centrifugal fan / thermal insulation rock wool / lifting thermal insulation door
■Safety protection system
Chain break / smoke alarm
Overtemperature / leakage
Equipment performance index and technical parameters
Control mode: PLC automatic program control, 7-inch color display large screen man-machine operation
Temperature range: room temperature - 85C can be set
Soil temperature uniformity: 2C
Modular design
Full range manipulator operation
Heating time: 45 minutes, the apparent temperature reaches 85C
Scope of application
The equipment meets the requirements of automatic static treatment of battery:
Equipment principle and working mode
Connect the previous process through the conveying line, and realize automatic heating, constant temperature and cooling by transporting the stacked battery frame to the feeding area of the furnace body. Then, the battery frame is transported away from the furnace body by the blanking manipulator and transported to the subsequent process by the conveying line.
